TP3: elliptic 1D equation with FEM
#Install package
import sys
!{sys.executable} -m pip install numpy
!{sys.executable} -m pip install matplotlib
!{sys.executable} -m pip install scikit-fem
# import packages
import skfem # for Finite Element Method
import numpy as np
import matplotlib.pyplot as plt
import random
============================================================
POD-Galerkin with FEM
1) First exercise: Reproduce course example
Elliptic diffusion problem (1D) with scikit-fem:
$ -\frac{d}{dx} ( A(\mu) \frac{du}{dx} ) = f(x) \ \mathrm{ on }\ (0, 0.5)$
$ u(0) = u(0.5) = 0 (Dirichlet)$
-------------------
FEM:
Find $u_h = \sum_{i=1}^{\mathcal{N}} u_i w_i$ such that :
$a(u_h,v_h;\mu)=l(v_h) \forall v_h \in V_h$
with Dirichlet boundary $u=0$ on $\partial \Omega$.
Here $\Omega=[0,0.5] $. We use a uniform mesh, with $Ne + 1$ degrees of freedom.
$A(\mu)=0.1 + \mu$
$f(x) = sin(2\pi x) $
Solve the problem for $\mu_1 = 0.5$ and $mu_2 = 1.5$
"""
Elliptic diffusion problem (1D) with scikit-fem:
-d/dx ( a(mu) * du/dx ) = f(x) on (0, 1)
u(0) = u(1) = 0 (Dirichlet)
We solve it for two parameters mu1, mu2 (via a(mu)),
and also plot an intermediate solution between them.
"""
from skfem import MeshLine, Basis, asm, enforce,solve
from skfem.element import ElementLineP1
from skfem.helpers import dot, grad
from skfem.assembly import BilinearForm, LinearForm
# -----------------------
# Problem setup
# -----------------------
Ne = 100 # number of mesh points
m = MeshLine(np.linspace(0.0, 0.5, Ne + 1))
basis = Basis(m, ElementLineP1())
# Dirichlet boundary DOFs
D = basis.get_dofs().all() # all dofs
# Parameter-dependent diffusion coefficient
def A_mu(mu):
return ...
# Sinusoidal source term : compute int f*v
@LinearForm
def rhs(v, w):
x = w.x[0]
f = ... # sinusoidal source
return ...
@BilinearForm
def diffusion(u, v, w):
return ...
def FEMassembling(m):
"""
m= mesh
return A,b (no parameter dependance)
"""
basis = Basis(m, ElementLineP1())
A = asm(diffusion, basis) #assembling stiffness
b = asm(rhs, basis)
return A,b
def FEMsolve(A,b,m,mu):
# solve Au=b
# Apply homogeneous Dirichlet at x=0,0.5
... = enforce(...,..., D=m.boundary_nodes()) #enforce boundary conditions on A and b
u = ...
return u
# -----------------------------------
# Solve for two mus + an intermediate
# -----------------------------------
mu1 = ...
mu2 = ...
theta = ... # intermediate parameter weight
mu_mid = ...
A,b=...
u1 = ...
u2 = ...
umid = ...
#linear combination in solution space:
theta2 = ...
u_lin = ...
x_fine = basis.doflocs[0]
plt.figure(figsize=(8, 4.5))
plt.plot(x_fine, u1, lw=2, label=fr"$u(\mu_1)$, $\mu_1={mu1}$, $A={A_mu(mu1):.3g}$")
plt.plot(x_fine, u2, lw=2, label=fr"$u(\mu_2)$, $\mu_2={mu2}$, $A={A_mu(mu2):.3g}$")
plt.plot(x_fine, umid, lw=2, label=fr"$u(\mu_{{mid}})$, $\mu_{{mid}}={mu_mid}$, $A={A_mu(mu_mid):.3g}$")
plt.plot(x_fine, u_lin, "--", lw=2, label=fr"linear blend $\alpha_1 u(\mu_1)+\alpha_2\ u(\mu_2)$")
plt.xlabel("x")
plt.ylabel("u(x)")
plt.title(r"Elliptic diffusion: $-(A(\mu)u')' = \sin(2\pi x)$, $u(0)=u(0.5)=0$")
plt.grid(True, alpha=0.3)
plt.legend()
plt.tight_layout()
plt.show()
""" POD """
### USE AND ADAPT TP1 FUNCTION...
def Construct_RB(NumberOfSnapshots=100,NumberOfModes=20,m=m):
"""
NumberOfSnapshots= Training set
NumberOfModes= N
m=mesh
"""
print("number of modes: ",NumberOfModes)
basis =...
A,b = ...
Snapshots=[]
for i in range(NumberOfSnapshots):
mu = ... #random coefficient in [1,10]
U = ...
Snapshots.append(U)
print("last parameter:",mu)
## SVD ##
#(u,v)_L2=v^T M u
@BilinearForm
def massVelocity(u, v, _):
return u * v
L2=massVelocity.assemble(basis)
# We first compute the correlation matrix C_ij = (u_i,u_j)
CorrelationMatrix = np.zeros((NumberOfSnapshots, NumberOfSnapshots))
...
# Then, we compute the eigenvalues/eigenvectors of C
# sort the eigenvalues
# retrieve N=NumberOfModes first eigenvalues
print("Relativ Information Content (must be close to 0): ",RIC)
ReducedBasis = ...
return ReducedBasis
## test POD
Ne = 100
m = MeshLine(np.linspace(0.0, 0.5, Ne + 1))
basis = ...
ReducedBasis=...
x_fine = basis.doflocs[0]

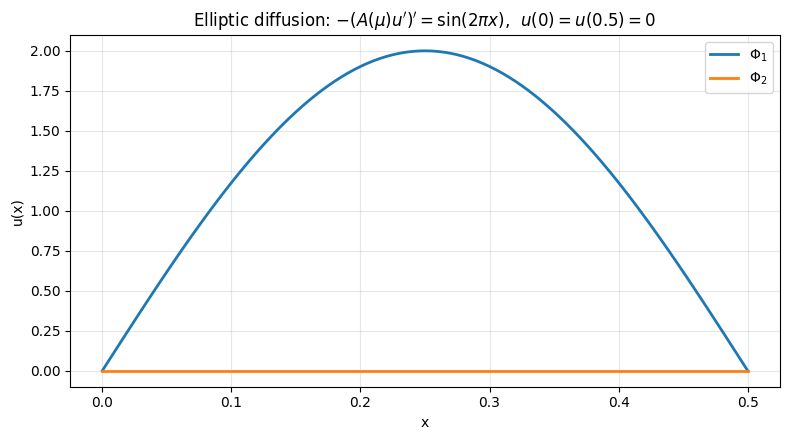

plt.figure(figsize=(8, 4.5))
plt.plot(x_fine, ReducedBasis[:,0], lw=2, label=fr"$\Phi_1$")
plt.plot(x_fine, ReducedBasis[:,1], lw=2, label=fr"$\Phi_2$")
plt.xlabel("x")
plt.ylabel("u(x)")
plt.title(r"Elliptic diffusion: $-(A(\mu)u')' = \sin(2\pi x)$, $u(0)=u(0.5)=0$")
plt.grid(True, alpha=0.3)
plt.legend()
plt.tight_layout()
plt.show()
number of modes: 20
last parameter: 6.143665788168235
eigenvalues: [8.98119945e-04 3.14744663e-19 1.86645528e-19 1.60949973e-19
1.47391858e-19 1.39085760e-19 1.23763284e-19 1.09913265e-19
9.82897092e-20 9.02160650e-20 8.61172372e-20 7.35151495e-20
6.22059607e-20 5.34464736e-20 4.79110054e-20 4.45199243e-20
4.14772357e-20 3.27361686e-20 2.92939093e-20 2.59839285e-20]
Relativ Information Content (must be close to 0): -2.220446049250313e-15
# POD-Galerkin
A, b = FEMassembling(m)
def solve_fem_rom(A,b,mu, Phi,m):
# assemble full system
...
return a, u_rom #( or return only u_rom)
mu = mu_mid
Ne = 100
m = MeshLine(np.linspace(0.0, 0.5, Ne + 1))
basis = Basis(m, ElementLineP1())
A,b=FEMassembling(m)
a,u_proj=solve_fem_rom(A,b,mu, Phi,m)
x_fine = basis.doflocs[0]
plt.plot(x_fine,u_proj, lw=2, label="$urom_{mid}$")
plt.plot(x_fine, umid, lw=2, label=fr"$u(\mu_{{mid}})$, $\mu_{{mid}}={mu_mid}$, $A={A_mu(mu_mid):.3g}$")
plt.plot(x_fine, u_lin, "--", lw=2, label=fr"linear blend $\alpha_1\ u(\mu_1)+\alpha_2\ u(\mu_2)$")
plt.xlabel("x")
plt.ylabel("u(x)")
plt.title(r"Elliptic diffusion: $-(A(\mu)u')' = \sin(2\pi x)$, $u(0)=u(0.5)=0$")
plt.grid(True, alpha=0.3)
plt.legend()
plt.tight_layout()
plt.show()
#### Convergence
mu = 0.6
@BilinearForm
def massVelocity(u, v, _):
return u*v
err_true=[]
err_rom=[]
# choose grid sizes to test
Ns = [...] # adapt as you want
for n in Ns:
print("n",n)
m = ...
basis = ...
L2=massVelocity.assemble(basis)
xc = basis.doflocs[0]
A, b = ...
U = ...
Phi=...
_,Uproj=...
points_new = xc
u_exact=... #compute true solution
## print error
true_error = np.abs(u_exact - U)
l2_true_error=np.sqrt(true_error@L2.dot(true_error))
print(l2_true_error)
rom_error = np.abs(u_exact - Uproj)
l2_rom_error=np.sqrt(rom_error@L2.dot(rom_error))
# L2 errors (cellwise)
err_true.append(l2_true_error)
err_rom.append(l2_rom_error)
# ---------------------------
# Plot log-log convergence
# ---------------------------
hs = np.array(Ns)
err_true = np.array(err_true)
err_rom = np.array(err_rom)
plt.figure()
plt.loglog(hs, err_true, "o-", label=r"$\|u_{ref}-u\|_{L^2}$")
plt.loglog(hs, 1/(hs**...), "-", label=r"$h^2$")
plt.loglog(hs, err_rom, "s-", label=r"$\|u_{ref}-u_N\|_{L^2}$")
plt.gca().invert_xaxis() # optional: smaller h to the right
plt.xlabel(r"$h$")
plt.ylabel(r"$L^2$ error")
plt.grid(True, which="both")
plt.legend()
plt.show()
