TP5 POD + EIM

#Install package
import sys
!{sys.executable} -m pip install numpy
!{sys.executable} -m pip install matplotlib
!{sys.executable} -m pip install scikit-fem

# import packages

import skfem  # for Finite Element Method
import numpy as np
import scipy.sparse as sp
import scipy.sparse.linalg as spla
import matplotlib.pyplot as plt
from scipy.interpolate import interp1d
import random
from scipy.sparse.linalg import factorized
import time

============================================================

Greedy-Galerkin with FEM

Poisson equation / thermal stationary conduction

Elliptic diffusion problem (2D) with scikit-fem:

$ -\nabla \cdot ( A(x,\mu) \nabla u) = g(x) \ \mathrm{ on }\ (0, 1)^2$

$ u(0) = u(1) = 0 (Dirichlet)$

FEM:

Find $u_h = \sum_{i=1}^{\mathcal{N}} u_i w_i$ such that :

$a(u_h,v_h;\mu)=l(v_h), \ \forall v_h \in V_h$

with Dirichlet boundary $u=0$ on $\partial \Omega$.

Here $\Omega=[0,1] \times [0,1] = \Omega_1 \cup \Omega_2 \cup \Omega_3 \cup \Omega_4$. We use a uniform Delaunay mesh, with $Nx \times Ny$ degrees of freedom.

$A(x,\mu)= \frac{1}{(x_1-\mu_1)^2+ (x_2-\mu_2)^2} $ in $ \Omega_i$

with $\mu_i \in [-2,-1]$

$g=1$

1) Complete the code and solve the problem for mu =[1,2,3,4]

"""
Elliptic diffusion problem (2D) with scikit-fem:

$ -\nabla \cdot ( A(x,\mu) \nabla u) = g(x)  \ \mathrm{ on }\ (0, 1)^2$
$    u(0) = u(1) = 0  (Dirichlet)$

"""

import numpy as np
import matplotlib.pyplot as plt

from skfem import MeshTri, Basis, asm, enforce,solve
from skfem.element import ElementTriP1
from skfem.helpers import dot, grad
from skfem.assembly import BilinearForm, LinearForm
from skfem import solve

# -----------------------
# Problem setup
# -----------------------

Nx = 50
Ny = 50

# Maillage triangulaire du carré (0,1)^2
m = MeshTri.init_tensor(
    np.linspace(0.0, 1.0, Nx + 1),
    np.linspace(0.0, 1.0, Ny + 1)
)

basis = Basis(m, ElementTriP1())

# Dirichlet boundary DOFs
D = basis.get_dofs().all()  # all dofs

# l2 scalar product in 2D
@BilinearForm
def massMatrix(u, v, _):
    return ...


# -----------------------
# RHS: g = 1
# -----------------------
@LinearForm
def rhs(v, w):
    return ...

# -----------------------
# Bilinear form
# -----------------------
@BilinearForm
def diffusion(u, v, w):
    return  ...

@BilinearForm
def diffusion_mu(u, v, w):
    ...
    return ...



# -----------------------
# Assembly
# -----------------------
def FEMassembling(m,mu):
    basis = Basis(m, ElementTriP1())
    A11 = asm(diffusion_mu, basis,mu1=mu[0],mu2=mu[1])   # on Omega_11
    b = asm(rhs, basis)                #  g = 1

    return A11, b, basis


# -----------------------
# Solve
# -----------------------
def FEMsolve(A11, b, basis, mu):

    A_bc, b_bc = enforce(A11, b, D=basis.get_dofs().all()) # Dirichlet
    u = solve(A_bc, b_bc) #solve

    return u



# -----------------------
# Example
# -----------------------
mu =[-0.5,-0.5]
A11, b, basis = FEMassembling(m,mu)

start = time.time()

u = FEMsolve(A11, b, basis, mu)
end = time.time()
print("Time :", end - start, "secondes")

# -----------------------

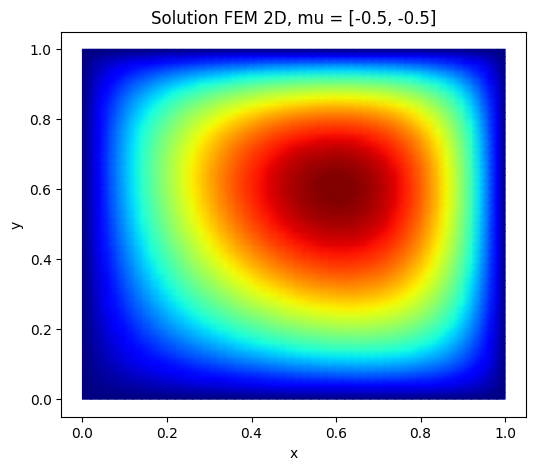

# Plot
# -----------------------
fig, ax = plt.subplots(figsize=(6, 5))
m.plot(u, ax=ax, shading='gouraud')
ax.set_title(f"Solution FEM 2D, mu = {mu}")
ax.set_xlabel("x")
ax.set_ylabel("y")
plt.show()

Time : 0.010053157806396484 secondes

############
""" POD """
############

def Construct_RB(NumberOfSnapshots=100,NumberOfModes=20,m=m):
    ...
    # orthogonality test
    return ReducedBasis

Nx=Ny = 100
m = MeshTri.init_tensor(
    np.linspace(0.0, 1.0, Nx + 1),
    np.linspace(0.0, 1.0, Ny + 1)
)

Phi=Construct_RB(NumberOfSnapshots=100,NumberOfModes=6,m=m)
ReducedBasis=Phi.T

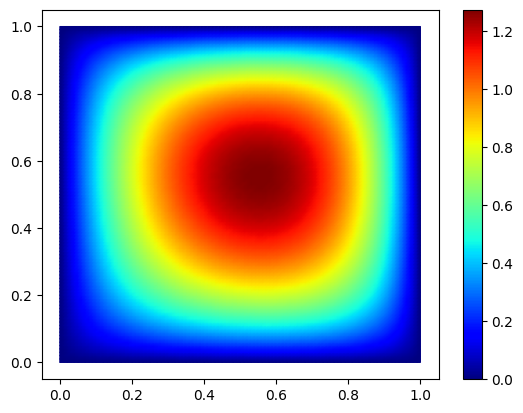

fig, ax = plt.subplots()

im=m.plot(ReducedBasis[:,0], ax=ax, shading='gouraud',colorbar=True)

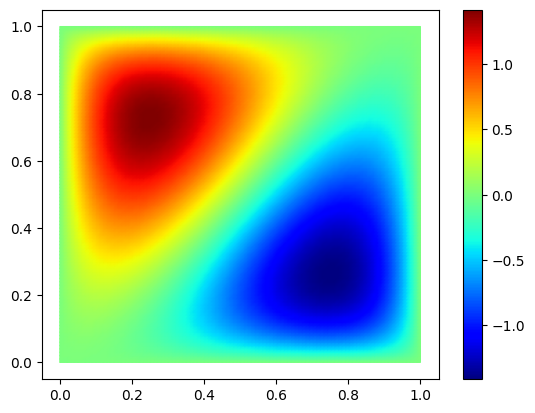

fig, ax = plt.subplots()

m.plot(ReducedBasis[:,1], ax=ax, shading='gouraud',colorbar=True)

plt.show()

eigenvalues:  [2.33547231e+01 2.35622158e-03 1.69859839e-03 1.10159535e-07
 4.52355318e-09 1.03259991e-09]


def solve_fem_rom(mu, Phi,m):
    ...
    return u_rom

mu = (-0.5,-0.5)
Nx=Ny = 100
m = MeshTri.init_tensor(
    np.linspace(0.0, 1.0, Nx + 1),
    np.linspace(0.0, 1.0, Ny + 1)
)
basis = Basis(m, ElementTriP1())

A11, b, basis = FEMassembling(m,mu)
Phi=Construct_RB(NumberOfSnapshots=100,NumberOfModes=6,m=m)
start = time.time()

u_proj=solve_fem_rom(mu, Phi,m)
end = time.time()
print("Time :", end - start, "secondes")

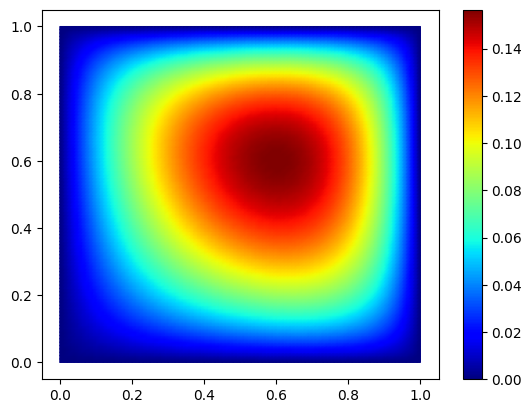

fig, ax = plt.subplots()

m.plot(u_proj, ax=ax, shading='gouraud',colorbar=True)



plt.show()

eigenvalues:  [2.35781631e+01 2.66412052e-03 1.98265280e-03 1.00231404e-07
 4.47211962e-09 1.30141639e-09]
Time : 0.03787684440612793 secondes

EIM

2. Complete the code EIM


from skfem import Basis, ElementTriP0

# ============================================================
# Param
# ============================================================

NumberOfModes = ...
NumberOfSnapshots = ...

MuMin = -2.0
MuMax = -1.0

basis = Basis(m, ElementTriP0())   # P0 : one value for each element
dof_locs = basis.doflocs
ndof = dof_locs.shape[1]

# training set
mu1_train = ...
mu2_train = ...

# ============================================================
# Function g(x; mu1, mu2)
# ============================================================

def g_fun(x, mu1, mu2):
    return ...

def project_g(mu1, mu2):
    """
    Projection/interpolation of g on FEM P0.
    """
    return basis.project(lambda x: g_fun(x, mu1, mu2))

# ============================================================
# OFFLINE : initialization
# ============================================================

#  snapshots g(mu)
ntrain = NumberOfSnapshots * NumberOfSnapshots

GGrid = np.zeros((ndof, ntrain))
GinftyGrid = np.zeros(ntrain)
mu_pairs = []

col = 0
for a in mu1_train:
    for b in mu2_train:
        u = ... # g projected
        GGrid[:, col] = u
        GinftyGrid[col] = ... # norm inf of u
        mu_pairs.append((a, b))
        col += 1

# first parameter
muIndex = ...
muIndexlist = [...]

mu1_star, mu2_star = ...
g1 = ...# first u(:,mu)

# first magic point
XIndex = ...
MagicPointIndiceslist = [...]
MagicPointlist = [(dof_locs[0, XIndex], dof_locs[1, XIndex])]

print("First magic point :", MagicPointlist[0])

# FIRST BASIS EIM
q1 = ...
qlist = [...]

# ============================================================
# OFFLINE :  EIM iterations
# ============================================================

for M in range(1, NumberOfModes):
    print(f"M = {M}")

    # Triangular matrix Q_M
    Qmat = ...
    for i in range(M):
        for j in range(M):
            Qmat[i, j] = ...

    ResidualGrid = np.zeros((ndof, ntrain))
    ResidualInf = np.zeros(ntrain)

    # Residual for each training parameters
    for col, (a, b) in enumerate(mu_pairs):
        u = ...

        Gvec = ... # right hand side
        alpha= ... # coefficients
        residual =...
        for i in range(M):
            residual -= ...

        ResidualGrid[:, col] = ...

        ResidualInf[col] = ...

    # avoir already chosen parameter
    for old_idx in muIndexlist:
        ResidualInf[old_idx] = -1e30

    # new optimal parameter
    muIndex =...

    muIndexlist.append(...)

    mu1_star, mu2_star = ...
    gM = ...

    # avoid already chosen point

    scores = np.abs(gM)
    for old_x in MagicPointIndiceslist:
        scores[old_x] = -np.inf
    # new magic point

    XIndex = ...

    MagicPointIndiceslist.append(...)
    MagicPointlist.append((dof_locs[0, XIndex], dof_locs[1, XIndex]))

    print("New magic point :", MagicPointlist[-1])
    print("Selected parameter :", (mu1_star, mu2_star))

    #basis function
    qM = ...
    qlist.append(...)

# ============================================================
# ONLINE
# ============================================================

mu1_target = ...
mu2_target = ...

u_true = project_g(mu1_target, mu2_target)

# complete Q
Qmat = ...
for i in range(NumberOfModes):
    for j in range(i + 1):
        Qmat[i, j] = ...

Gvec = ...

# coefficients EIM
alpha = ...

# reconstruction EIM
u_eim = ...
for j in range(NumberOfModes):
    u_eim += ...

# ============================================================
# Test in one point (xseek, yseek)
# ============================================================

xseek, yseek = 0.5, 0.5

element_finder = m.element_finder()
element_index = element_finder(np.array([xseek]), np.array([yseek]))[0]

approx_value = u_eim[element_index]
true_value_fem = u_true[element_index]
true_value_exact = g_fun(np.array([[xseek], [yseek]]), mu1_target, mu2_target)[0]

print()
print(f"Tested point : ({xseek}, {yseek})")
print(f"Approximation EIM      : {approx_value}")
print(f"Projeted FEM    : {true_value_fem}")
print(f"Exact value g(x, mu) : {true_value_exact}")
print(f"Error |EIM - FEM|     : {abs(approx_value - true_value_fem)}")
print(f"Error |EIM - exact|  : {abs(approx_value - true_value_exact)}")

3. Change your previous code to obtain one OFFLINE EIM and one ONLINE EIM and test it with your FEM + Reduced Basis Method code




def build_eim_offline(
    mesh,
    number_of_modes=15,
    number_of_snapshots=20,
    mu_min=-2.0,
    mu_max=-1.0,
):
  ...

    return {
        "q_basis": q_basis,
        "magic_indices": magic_indices,
        "magic_points": magic_points,
        "Q": Q,
        "basis_coeff": basis_coeff,
        "mu_pairs": mu_pairs,
    }

def eim_online(mu1, mu2, eim_data):
    """
    Compute theta(mu) such that
        g(x;mu) ≈ sum_m theta_m(mu) q_m(x)
    """
    ...

    return theta
